Overview

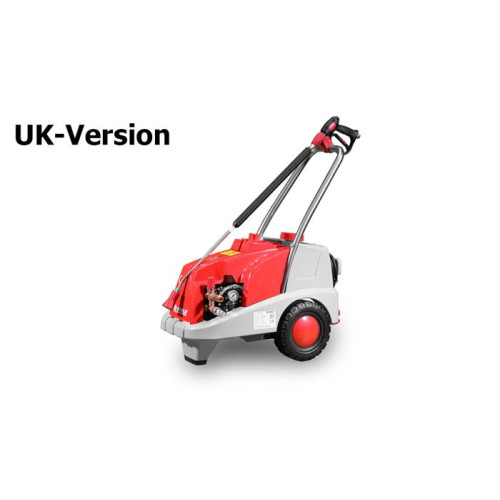

The EHRLE KD623-UK Standard is a mobile cold-water high-pressure cleaner for cleaning tasks where adjustable pressure and water flow are useful. It operates from a 240V supply and delivers 300–600 l/h, with an operating pressure range of 30–130 bar and a maximum pressure of 150 bar. A 17-litre cleaning-detergent tank, 10m high-pressure hose and 900mm spray lance with Vario nozzle provide a practical working setup for professional and property-maintenance cleaning.

Key Features

• Mobile cold-water high-pressure cleaner in the KD 3x3 series, Standard variant.
• 240V electrical supply with 2.9kW connected load and 13A slow electrical protection.
• Operating pressure of 30–130 bar, with a maximum pressure of 150 bar.
• Discharge capacity of 300–600 l/h.
• 17-litre cleaning-detergent tank.
• Supplied configuration includes a 10m DN06 high-pressure hose rated to 250 bar, trigger gun with swivel and 900mm spray lance with Vario nozzle.
• Stainless-steel 25° jet nozzle, size 040.
• Maximum inlet water temperature of 45°C.

Pressure and water delivery

The KD623 provides an operating pressure range of 30–130 bar, with a maximum pressure of 150 bar. Its discharge capacity ranges from 300 to 600 litres per hour, giving users a choice of pressure and water delivery for different cleaning requirements.

The cleaner is designed for cold-water operation and accepts inlet water up to 45°C.

Working equipment

The Standard configuration includes a 10m DN06 high-pressure hose rated to 250 bar, a trigger gun with swivel and a 900mm spray lance with Vario nozzle. A stainless-steel 25° jet nozzle, size 040, is also specified. The 17-litre detergent tank provides capacity for cleaning detergent during suitable cleaning tasks. Follow the machine operating instructions and the detergent manufacturer's safety instructions when using cleaning agents.

Electrical and physical details

The KD623-UK Standard is specified for a 1/N/PE, 50Hz, 240V supply, with a connected load of 2.9kW / 11.4A and 13A slow electrical protection. Its stated device dimensions are 80.5 × 48.5 × 95cm and its net weight is 42kg.
