Overview

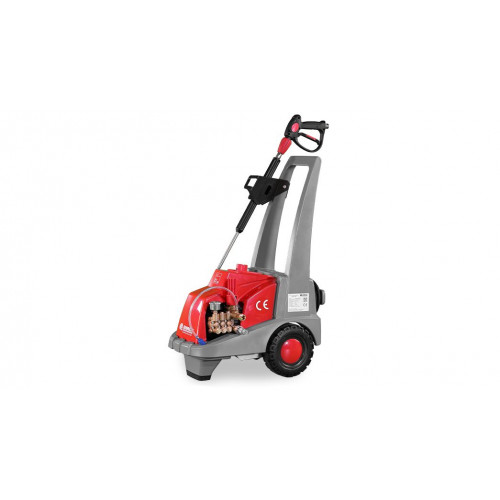

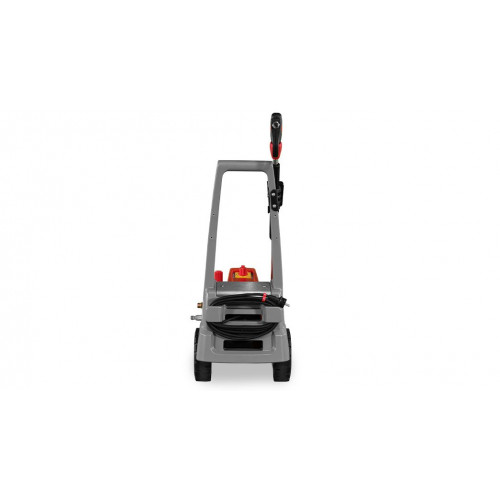

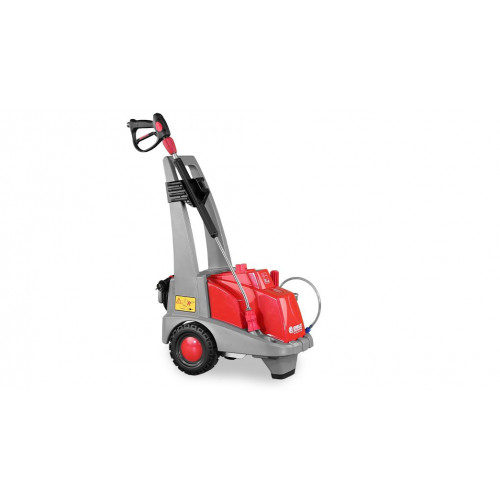

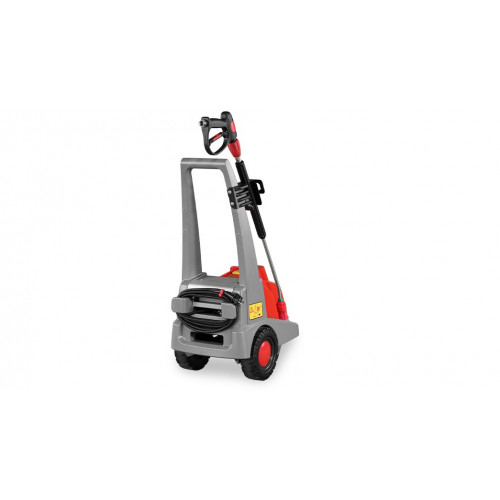

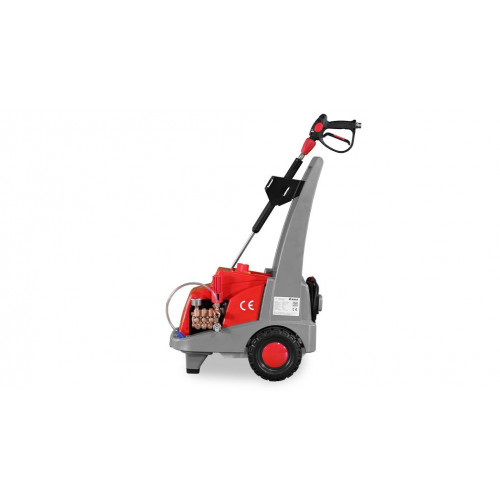

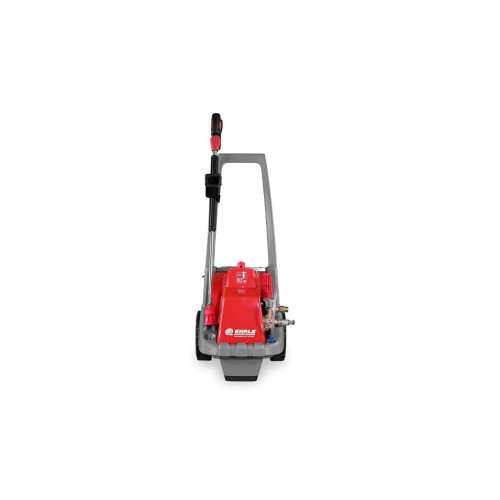

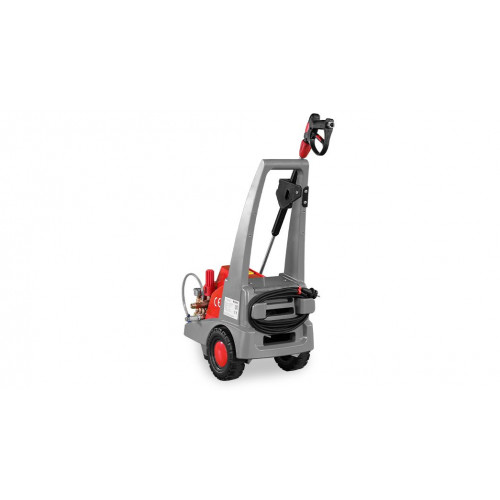

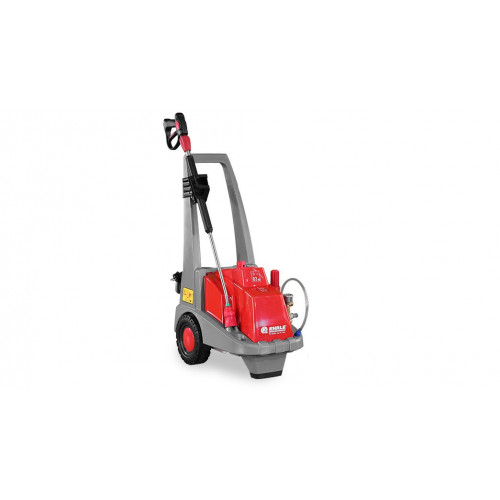

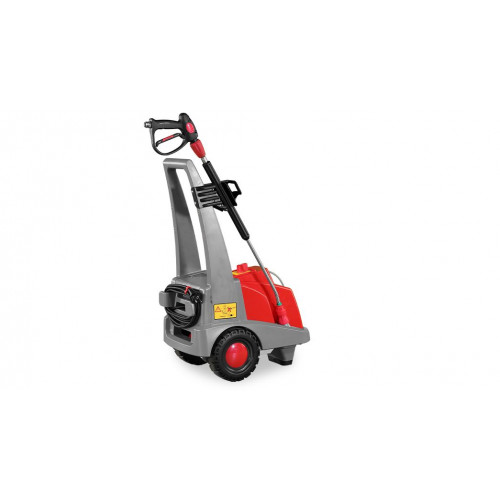

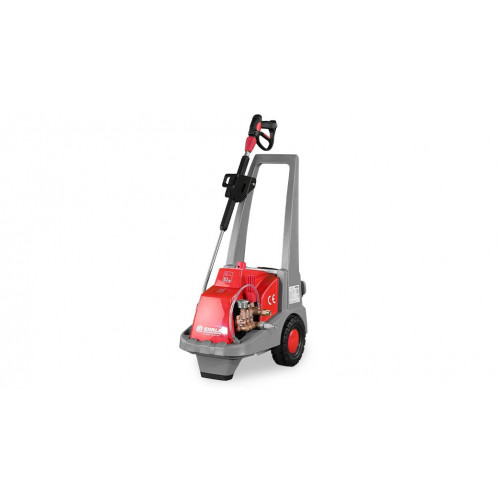

The EHRLE KD523-UK Standard is a mobile, cold-water high-pressure cleaner for cleaning tasks where adjustable pressure and water flow are useful. Its operating pressure ranges from 30 to 140 bar, with a maximum pressure of 155 bar and a water discharge capacity of 300–600 litres per hour. Designed for a 230/240 V electrical supply, it is a practical option for users needing a movable mains-powered pressure washer for regular cleaning work.

Key Features

• Adjustable operating pressure from 30 to 140 bar, with maximum pressure of 155 bar.
• Water discharge capacity of 300–600 litres per hour and feed volume of 10 litres per minute.
• 230/240 V electrical supply and 2.4 kW connected load.
• 10 m high-pressure hose rated to 250 bar.
• 700 mm spray lance with Vario nozzle and 25° stainless-steel jet nozzle.
• Trigger gun with swivel connection.
• Maximum inlet temperature of 45°C and maximum feed pressure of 5 bar.
• IPX5 degree of protection.

Pressure-washing equipment

The KD523-UK Standard is supplied with a 10 m high-pressure hose, a 700 mm spray lance with Vario nozzle, a 25° stainless-steel jet nozzle and a swivel trigger gun. The Vario nozzle provides an adjustable spray pattern, while the 25° jet nozzle offers a defined fan spray for cleaning work. The swivel connection on the trigger gun helps reduce hose twisting during use.

Operating requirements

This machine is specified for a 230/240 V, single-phase electrical supply, with a connected load of 2.4 kW and a stated current of 12 A. Check that the available supply and circuit protection are suitable before purchase and operation. Maximum inlet water temperature is 45°C and maximum feed pressure is 5 bar.

The cleaner measures 60 x 40 x 86 cm and has a net weight of 37 kg. Follow the EHRLE operating instructions for correct and safe operation.
